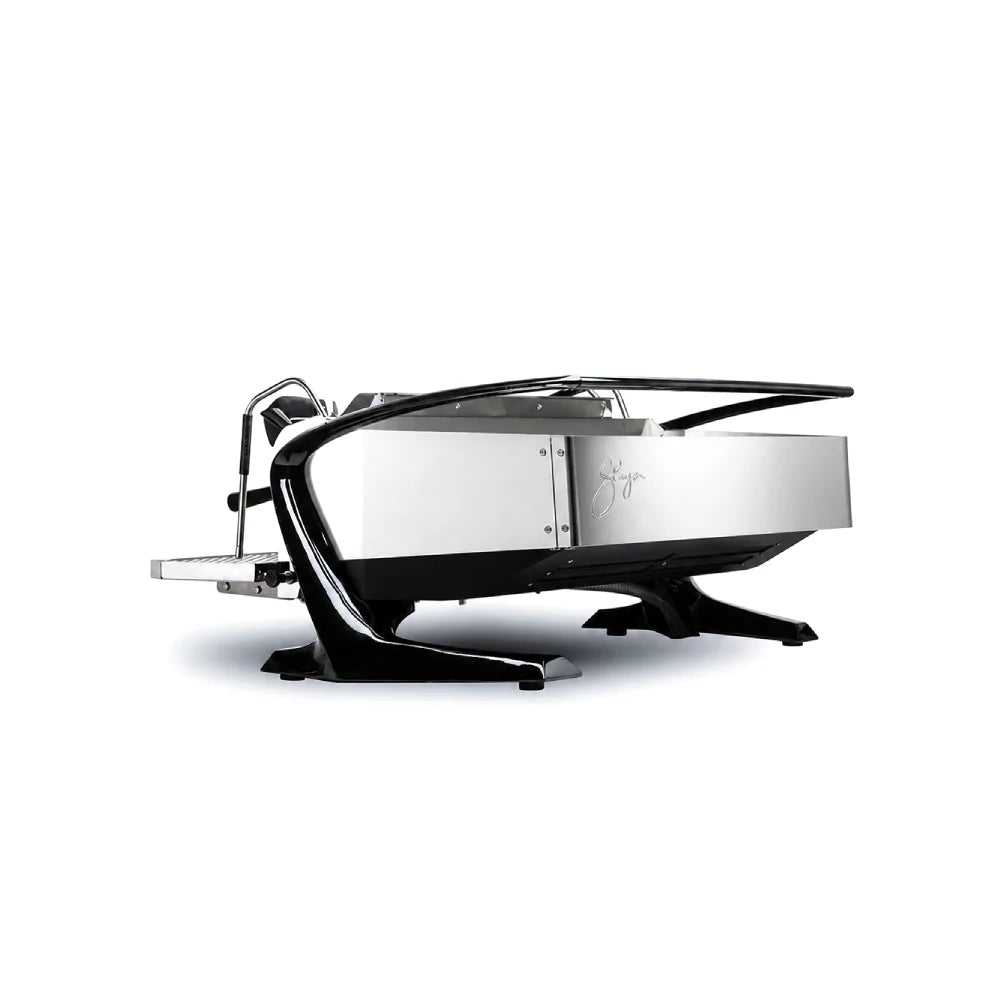

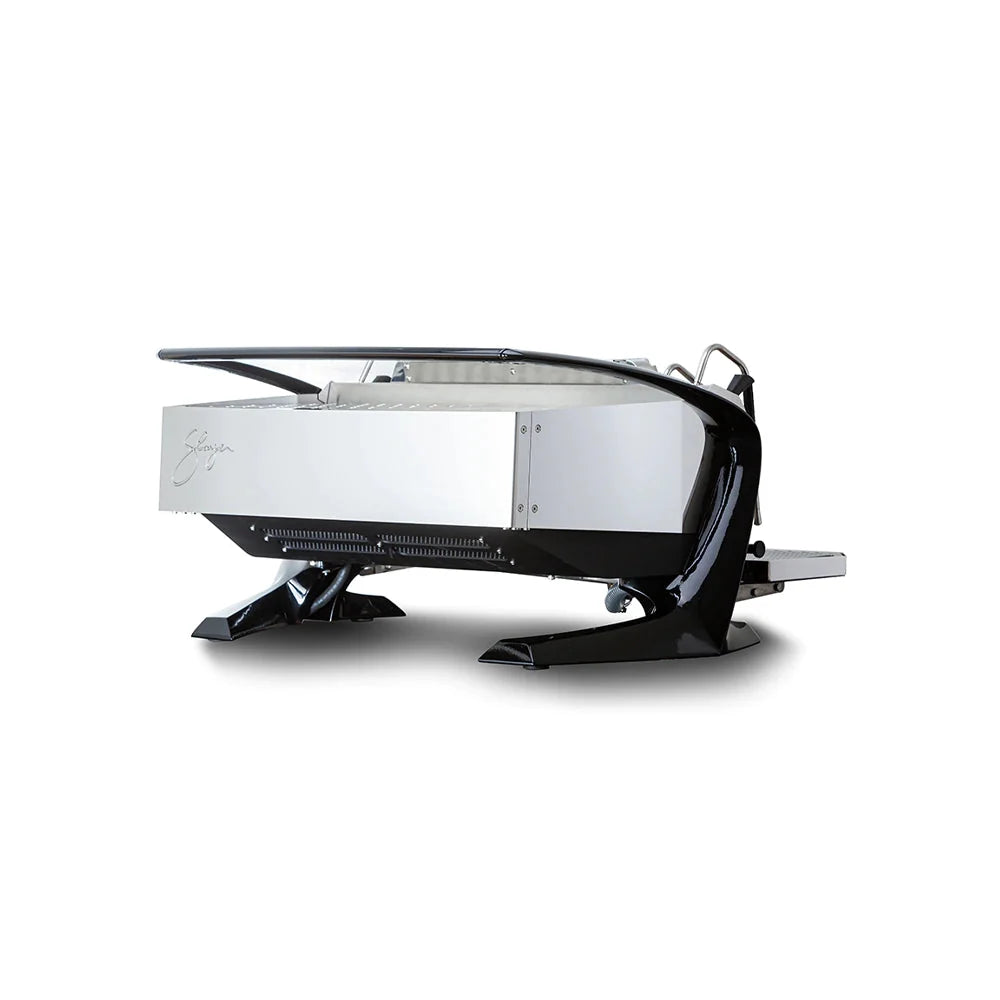

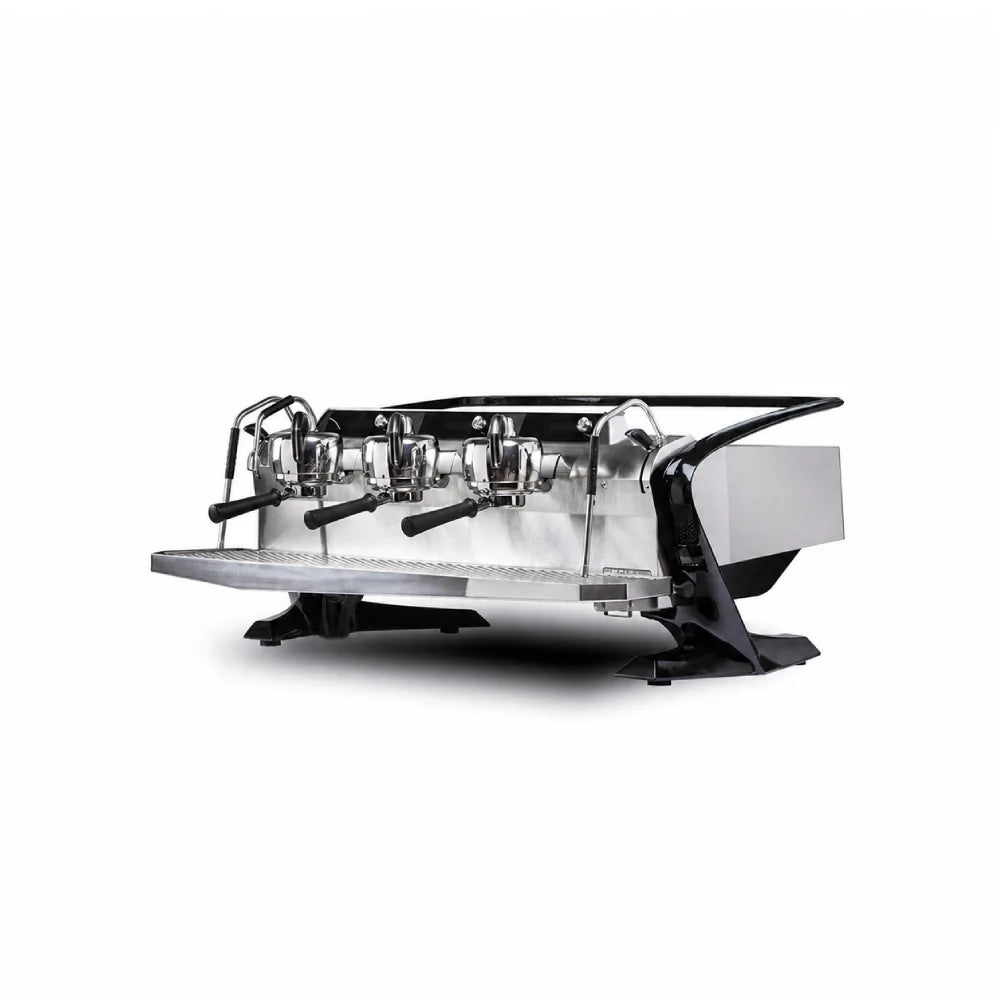

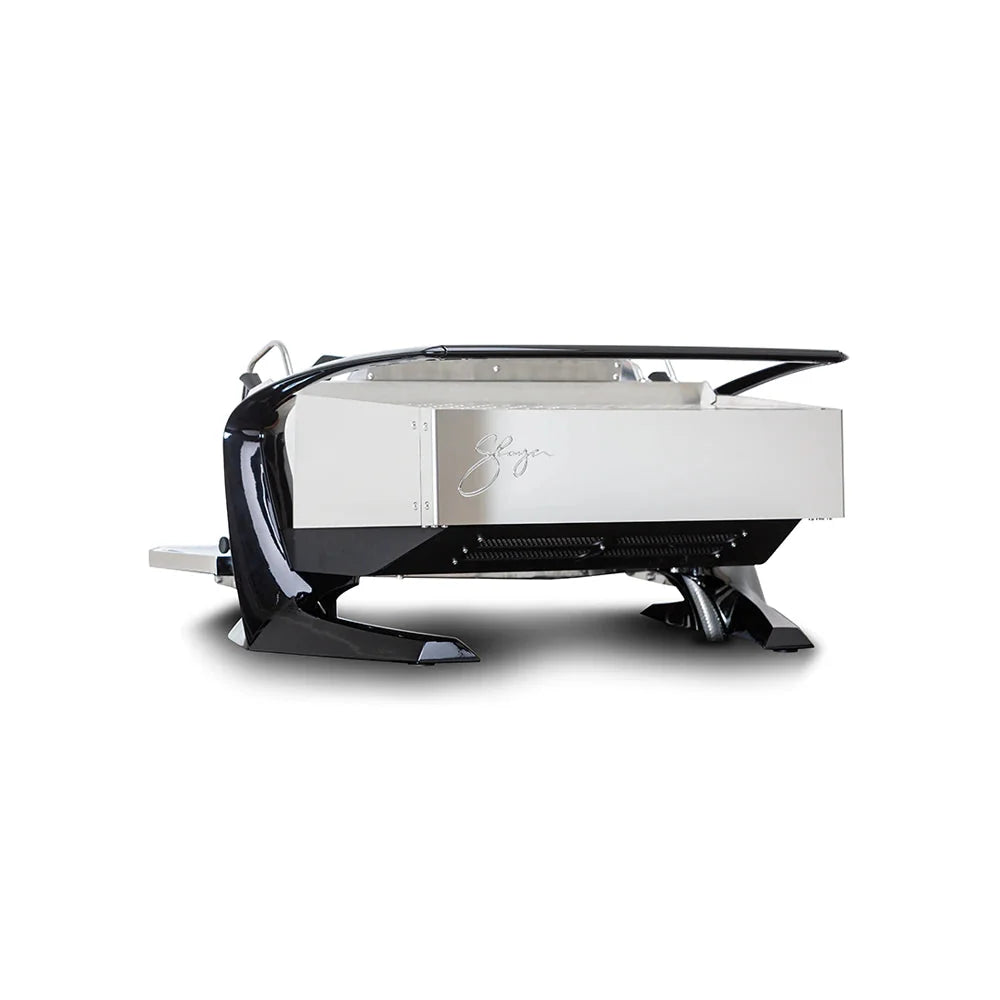

Slayer Steam LP Mirror Machines

The SLAYER Steam LP is designed for baristas seeking exceptional control through pressure profiling and repeatable espresso extraction. Programmable pre-infusion, post-infusion, and volumetric output settings help deliver consistent espresso with every shot.

The Steam LP supports both manual and volumetric brewing modes. Its intuitive interface can automatically record brewing parameters during extraction, allowing the same recipe to be replayed consistently throughout the day.

Designed to maximise espresso quality and workflow efficiency, the Steam LP combines manual pressure profiling with programmable recipe playback, giving baristas advanced brewing control together with reliable repeatability.

Essential Features

Variable Pressure

Easily switch between regulated low-pressure pre-infusion and traditional pump-pressure extraction using the brew actuator.

Intuitive Volumetric Interface

Record a manual extraction and replay the same recipe for consistent shot preparation throughout the day.

Quick Calibration

Adjust brewing values quickly or configure a complete brew recipe with simple menu controls.

Barista Dashboard per Group

Individual displays for each group head provide convenient access to machine operation, programming, and fine adjustments.

Electronic Solenoid Steam Valve

Electronic steam valves provide reliable, low-maintenance operation and do not require rebuilding like traditional mechanical valves.

Large Adjustable Drip Tray

Provides ample workspace for staging and preparing multiple drinks efficiently.

2 Group — Technical Specifications

Dimensions

·   Dimensions (cm): 89 × 71 × 43.2

Weight

·   Net Weight: 220 lb / 100 kg

Boiler System

·   Brew Tanks: 1.7 L / 600 W × 2

·   Steam Tank: 7.4 L / 3500 W

Electrical Specifications

Single-Phase Power

·   220–240 V

·   50–60 Hz

·   26 A

·   4.7–5.6 kW

Three-Phase Power

·   380–415 V 3N

·   50–60 Hz

·   17 A

·   4.9–5.7 kW

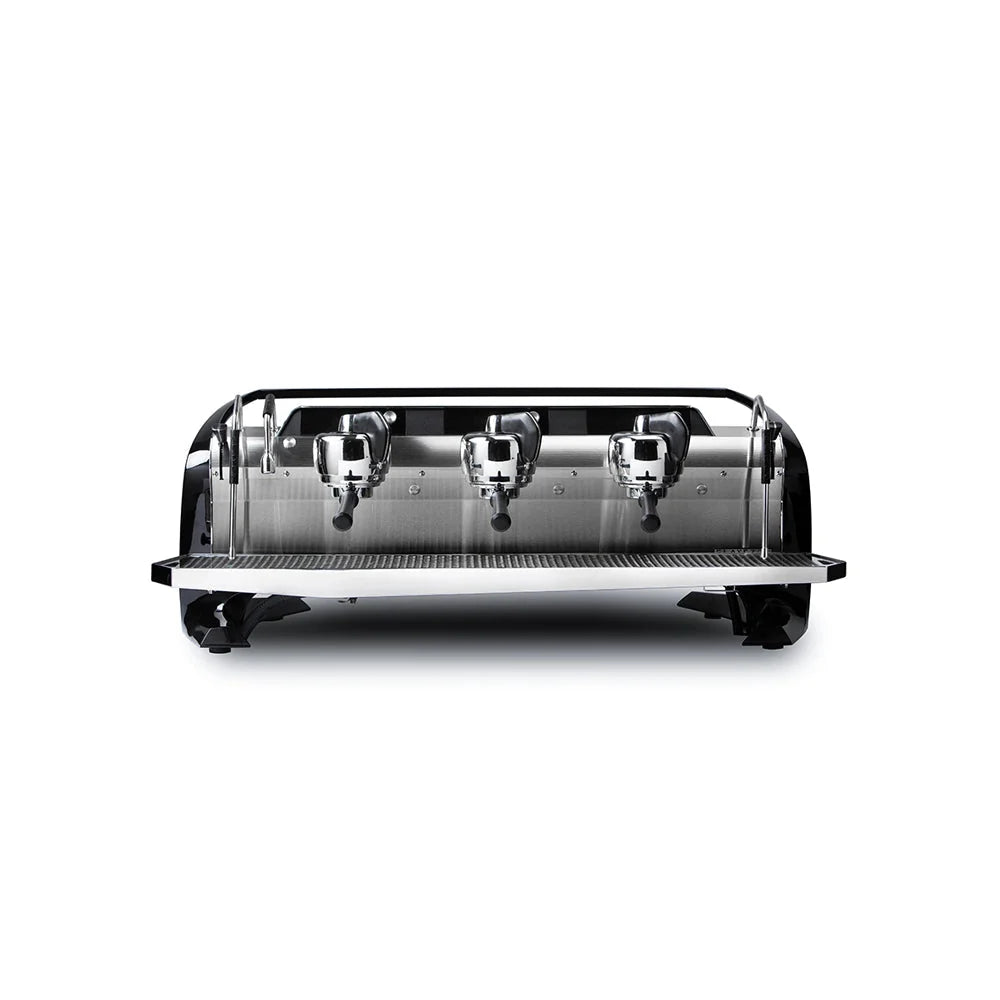

3 Group — Technical Specifications

Dimensions

·   Dimensions (cm): 113 × 71 × 43.2

Weight

·   Net Weight: 305 lb / 139 kg

Boiler System

·   Brew Tanks: 1.7 L / 600 W × 3

·   Steam Tank: 12 L / 4500 W

Electrical Specifications

Single-Phase Power

·   220–240 V

·   50–60 Hz

·   35 A

·   6.3–7.5 kW

Three-Phase Power

·   380–415 V 3N

·   50–60 Hz

·   22 A

·   5.8–6.5 kW
